NEEDLE ROLLER BEARINGS

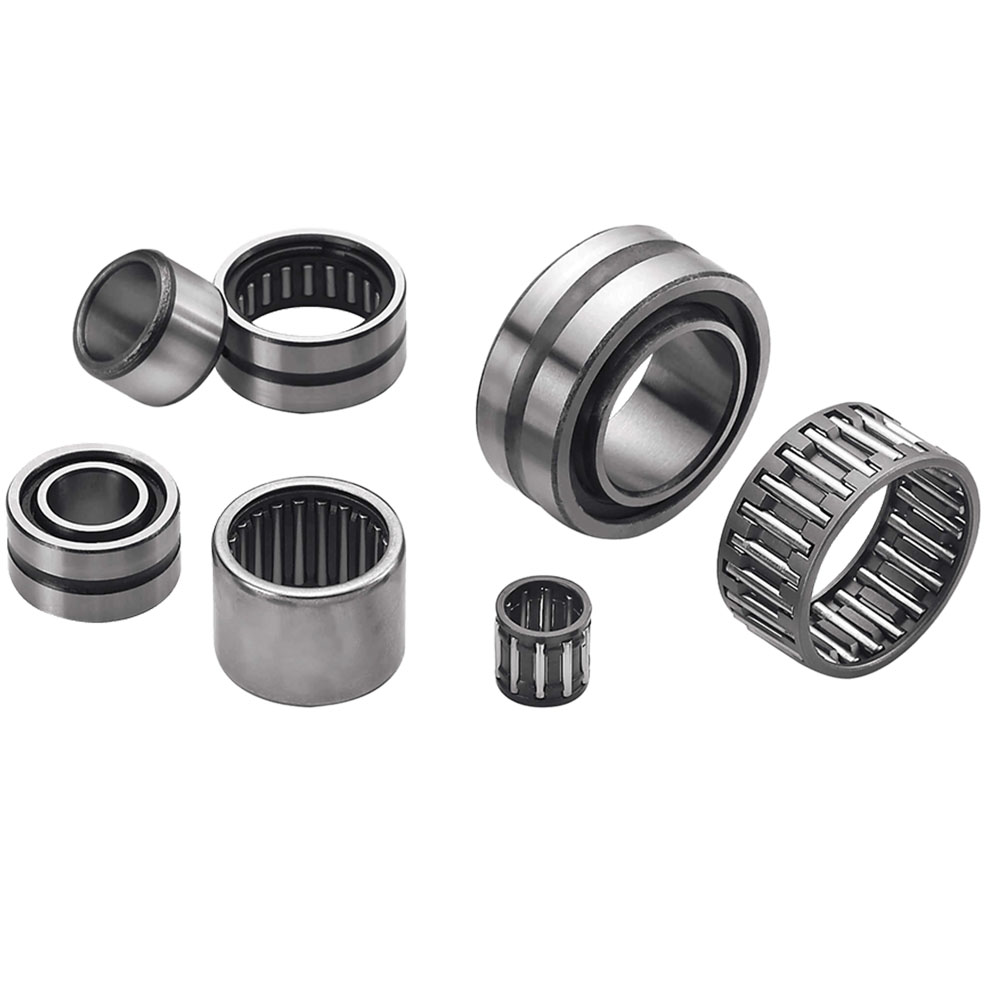

A needle roller bearing is a type of roller bearing known for its high load-carrying capacity and compact design. It uses cylindrical rollers with a high length-to-diameter ratio, resembling needles, hence the name “needle roller bearing.” These rollers are much thinner and longer than traditional cylindrical rollers found in other types of bearings.

Key features of needle roller bearings include:

Needle Rollers

Needle rollers are cylindrical rollers with a significantly smaller diameter compared to their length. This design allows needle roller bearings to support high radial loads while occupying minimal radial space.

Outer and Inner Rings

Needle roller bearings typically consist of an outer ring, an inner ring, and needle rollers held in place by a cage or retainer. The inner and outer rings serve as raceways for the needle rollers, providing smooth rolling motion.

Cage or Retainer

The cage or retainer holds the needle rollers in place, maintaining their spacing and alignment within the bearing. It also prevents the rollers from contacting each other, reducing friction and wear.
