LINEAR GUIDEWAY

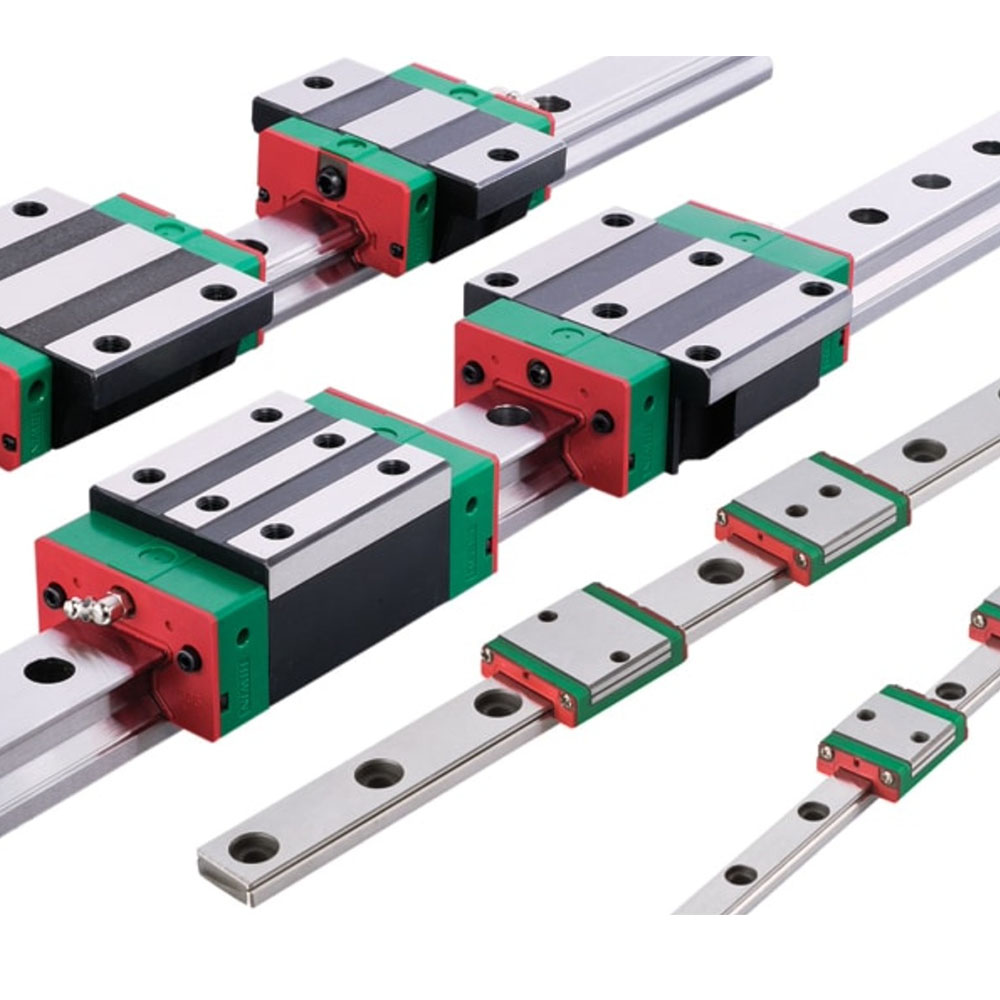

A linear guideway, also known as a linear guide or linear motion guide, is a mechanical component used to facilitate smooth and precise linear motion in a mechanical system. It consists of two main components: a linear rail and a carriage.

Here are the key components and features of a linear guideway:

Simple Design

Deep groove ball bearings have a straightforward design, consisting of only a few components, which makes them easy to manufacture and install.

Carriage

The carriage is the moving component of the linear guideway. It is mounted on the linear rail and is designed to travel along its length with minimal friction. The carriage typically contains rolling elements, such as balls or rollers, which interface with the linear rail to facilitate smooth and precise linear motion.

Rolling Elements

The rolling elements inside the carriage reduce friction between the carriage and the linear rail, allowing for smooth and efficient movement. Common types of rolling elements used in linear guideways include balls, rollers, and recirculating ball bearings.

Linear guideways are commonly used in a wide range of applications where precise linear motion is required, such as CNC machines, 3D printers, industrial automation equipment, semiconductor manufacturing, and medical devices. They offer several advantages, including high precision, repeatability, smooth operation, low friction, and minimal maintenance requirements.

Linear guideways come in various designs and configurations to suit different application requirements. They can vary in size, load capacity, accuracy, and rigidity, allowing for customization based on specific performance and environmental conditions. Additionally, linear guideways can be used individually or in combination with multiple guideways to support heavier loads or increase stability.
